Bulkheads


Bulkheads are push to connect fittings that are typically used to run air lines into a false floor or from the interior of your vehicle to the exterior. The standard SMC bulkheads we offer are great for connecting air line in a straight line. If you need to make a quick 90˚ turn on the other side of the bulkhead, you can thread in a swivel elbow for added options. If you have any questions about the bulkheads you see here, contact a Bag Riders air ride specialist for more information.

7 Items

Set Descending Direction
Bulkheads Products Browse a collection of Bulkheads products en
  1. Adjustable Fitting Wrench Adjustable Aluminum Fitting Wrench https://www.bagriders.com/media/catalog/product/cache/6cc469ce9f0c45ca88dc49d6594bbebe/f/i/fitting-wrench-2.jpg
    <p>Tired of always looking for the right size open ended wrench or your adjustable keeps slipping off and marking up your fittings and tank? This aluminum fitting wrench is the perfect solution, especially if you're working on a show-worthy hardline setup. This wrench engages with 5 sides of the fitting for a more secure fit. It's also aluminum, meaning it's softer than the brass and steel fittings you're working with, and should reduce any marring to the fittings.</p>
    BR26507 USD 30.00 https://schema.org/NewCondition https://schema.org/InStock
  2. Bag Riders Manifold Hard Line Kit

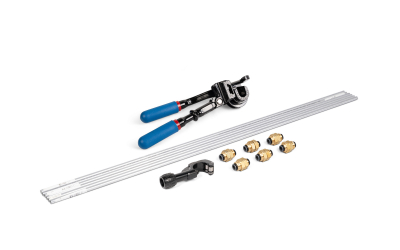

    Bag Riders Manifold Hard Line Kit
    Rating:
    0%
    0
    $250.00
    Bag Riders Manifold Hard Line Kit https://www.bagriders.com/media/catalog/product/cache/6cc469ce9f0c45ca88dc49d6594bbebe/q/u/quarter-inch-hardline-kit_1_1.jpg
    <p>You bagged your car, but now you're trying to spice up your trunk setup and make it a little more presentable? Our Manifold Hard Line kit will come with everything you need as a first timer to get started making your own hard line setup and you'll save some money buying it as a bundle! This kit is intended to connect the 6 ports on a traditional air ride manifold to bulkheads in the floor. Since it comes with 6 feet of hardline, you'll have plenty to make these connections, and you can afford a few mistakes. You might even have some left over if you want to connect your tank to your manifold with hardline. Our kit includes aluminum hard lines which seal well with PTC fittings (unlike Stainless Steel hard lines) and can be polished up for a show-worthy shine.</p> <strong>Includes:</strong> <ul> <li>(6) 3 Ft Sections of Aluminum Hardline (<a href="{{store direct_url=aluminum-hardline-1-4.html}}" target="_blank">1/4"</a> or <a href="{{store direct_url=aluminum-hardline-3-8.html}}" target="_blank">3/8"</a>)</li> <li>(6) <a href="{{store direct_url=smc-dot-bulkhead-union.html}}" target="_blank">SMC DOT Bulkhead Unions</a> (1/4" or 3/8")</li> <li>(1) Ridgid 400 Series Hard Line Bender (<a href="{{store direct_url=ridgid-400-series-hardline-bender-1-4.html}}" target="_blank">1/4"</a> or <a href="{{store direct_url=ridgid-400-series-hardline-bender-3-8.html}}" target="_blank">3/8"</a>)</li> <li>(1) <a href="{{store direct_url=hardline-cutter.html}}" target="_blank">Hard Line Cutter</a></li> </ul>
    Bag Riders Manifold Hard Line Kit USD 250.00 https://schema.org/NewCondition https://schema.org/InStock
  3. Camozzi DOT bulkhead union

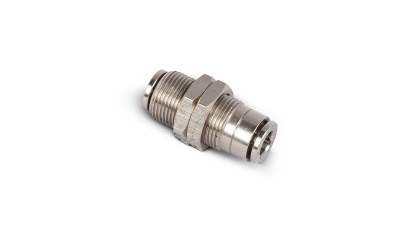

    Camozzi DOT Bulkhead Union
    Rating:
    0%
    0
    $4.75
    Camozzi DOT Bulkhead Union https://www.bagriders.com/media/catalog/product/cache/6cc469ce9f0c45ca88dc49d6594bbebe/c/a/camozzi-dot-bulkhead-union-resize-1.jpg
    <p>These Camozzi Bulkhead unions are helpful when running hardlines into the floor and then softlines underneath. Drill a hole in the surface you want to pass through, and use the included nuts to affix the union through the hole. PTC connections on either side make plugging and unblugging lines a breeze. These fittings are DOT approved, and the silver finish on them might match your finished trunk setup better than the brass <a target="_blank" href="{{store direct_url=smc-dot-bulkhead.html}}">SMC DOT Bulkheads</a>.</p>
    Camozzi DOT Bulkhead Union USD 4.75 https://schema.org/NewCondition https://schema.org/InStock
  4. bulkhead_drill_bit

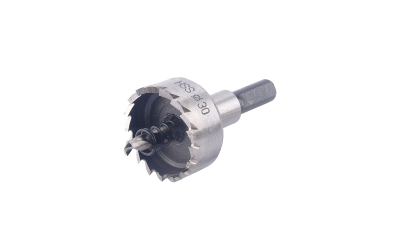

    SMC DOT Bulkhead Drill Bit
    Rating:
    100%
    1
    $12.00
    SMC DOT Bulkhead Drill Bit https://www.bagriders.com/media/catalog/product/cache/6cc469ce9f0c45ca88dc49d6594bbebe/b/u/bulkhead_drill_bit.jpg

    SMC Bulkheads use metric hole sizes and the bits are hard to find in US hardware stores. Use this perfectly sized metal drill bit for a clean installation of SMC DOT Bulkhead Unions or SMC DOT Bulkhead Female Straights.

    Drill bit sizes:
    • 1/4" bulkhead - 15mm drill bit
    • 3/8" bulkhead - 23mm drill bit
    • 1/2" bulkhead - 26mm drill bit
    SMC Bulkhead Drill Bit USD 12.00 https://schema.org/NewCondition https://schema.org/InStock
  5. smc_dot_bulkhead_female_straight_base_1 SMC DOT Bulkhead Female Straight https://www.bagriders.com/media/catalog/product/cache/6cc469ce9f0c45ca88dc49d6594bbebe/s/m/smc_dot_bulkhead_female_straight_base_2b.jpg

    The SMC DOT Bulkhead Female Straights are great fittings to use when running air lines into a false floor or from the interior of your vehicle to the exterior. If you need the air line to make a direct 90º turn after the female bulkhead, just use a swivel elbow like the SMC DOT Swivel Elbow. These fittings are DOT approved and feature a metal sleeve which helps align the air line inside of the fitting, providing an improved seal.

    For an easy install, check out our SMC DOT Bulkhead Drill Bit

    Drill bit sizes for installation:
    • 1/4" bulkhead - 15mm or 9/16" drill bit
    • 3/8" bulkhead - 23mm or 7/8" drill bit
    • 1/2" bulkhead - 26mm or 1" drill bit
    SMC DOT Bulkhead Female Straight USD 9.70 https://schema.org/NewCondition https://schema.org/InStock
  6. SMC DOT bulkhead union
    SMC DOT Bulkhead Union
    Rating:
    100%
    7
    $8.38
    SMC DOT Bulkhead Union https://www.bagriders.com/media/catalog/product/cache/6cc469ce9f0c45ca88dc49d6594bbebe/s/m/smc_dot_bulkhead_union_b2.jpg
    <p>The SMC DOT Bulkhead Unions are great fittings to use when running air lines into a false floor or from the interior of your vehicle to the exterior. These fittings are DOT approved and feature a metal sleeve which helps align the air line inside of the fitting, providing an improved seal.</p> <p>For an easy install, check out our <a target="_blank" href="{{store direct_url="smc-dot-bulkhead-drill-bit.html"}}">SMC DOT Bulkhead Drill Bit</a></p> Drill bit sizes for installation: <ul> <li>1/4" bulkhead - 15mm or 9/16" drill bit</li> <li>3/8" bulkhead - 23mm or 7/8" drill bit</li> <li>1/2" bulkhead - 26mm or 1" drill bit</li> </ul>
    SMC DOT Bulkhead Union USD 8.38 https://schema.org/NewCondition https://schema.org/InStock
  7. smc_rubber_grommet_01
    SMC PTC Rubber Boot
    Rating:
    100%
    1
    $1.50
    SMC PTC Rubber Boot https://www.bagriders.com/media/catalog/product/cache/6cc469ce9f0c45ca88dc49d6594bbebe/s/m/smc_rubber_grommet_01.jpg

    This rubber boot from SMC is used to protect your PTC fittings from grime and debris when mounted outside of your vehicle.

    SMC PTC Rubber Boot USD 1.50 https://schema.org/NewCondition https://schema.org/InStock


Videos



What Are Bulkhead Fittings?

Bulkhead fittings are common air suspension fittings that help transition air line through a solid panel in your vehicle. Bulkheads can be used to pass air line through a false floor in a stylized air management trunk setup, or simply getting your air line from the inside of your vehicle to the outside.
